Size/Weight | | | |
Dimensions | Width | 1,336 mm [52-5/8"] | |
| Height | 145 mm [5-11/16"] (with music rest: 328 mm [12-15/16"]) | |
| Depth | 376 mm [14-13/16"] (with music rest: 403 mm [15-7/8"]) | |
Weight | Weight | 22.0 kg [48 lb, 8 oz] | |
Dimensions (with optional stand) | W x H x D | 1,457 mm x 311 mm x 531 mm [57-3/8" x 12-1/4" x 20-7/8"] | |
Control Interface | | | |
Keyboard | Number of Keys | 88 | |
| Type | GrandTouch-S™ Keyboard: wooden keys (white only), synthetic ebony and ivory key tops, escapement | |
| Touch Sensitivity | Hard2/Hard1/Medium/Soft1/Soft2/Fixed | |
Pedal | Number of Pedals | 3 (when using the pedal unit, LP-1/FC35) | |
| Assignable Functions | Sustain (Switch), Sustain (Continuous), Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause | |
Display | Type | Full Dots LCD | |
| Size | 198 x 100 dots | |
| Language | Language | |
Panel | Language | English | |
Voices | | | |
Tone Generator | Piano Sound | Yamaha CFX, Bösendorfer Imperial | |
| Binaural Sampling | Yes ("CFX Grand" Voice only) | |
| Virtual Resonance Modeling (VRM) | Yes | |
| Grand Expression Modeling | Yes | |
Polyphony (max.) | Number of Voices | 44 Voices + 18 Drum/SFX Kits + 480 XG Voices | |
| Compatibility | XG (GM), GS (for Song playback), GM2 (for Song playback) | |
Effects | Reverb | 7 types | |
| Chorus | 3 types | |
| Master EQ | 3 Preset | 1 user |
| Insertion Effect | 12 types | |
| Intelligent Acoustic Control (IAC) | Yes | |
| Stereophonic Optimizer | Yes | |
| Sound Boost | 3 types | |
Functions | Dual/Layers | Yes | |
| Split | Yes | |
| Duo | Yes | |
Songs | | | |
Preset | Number of Preset Songs | 21 Voice Demo Songs + 50 Classics | |
MIDI Recording | Number of Songs | 250 | |
| Number of Tracks | 16 | |
| Data Capacity | Approx. 500 KB/Song (approx. 22,000 notes) | |
Audio Recording (USB memory) | Recording Time (max.) | 80 minutes/Song | |
Compatible Data Format | Playback | SMF (Format 0, Format 1), WAV (44.1 kHz sample rate, 16-bit resolution, stereo) | |
| Recording | SMF (Format 0), WAV (44.1 kHz sample rate, 16-bit resolution, stereo) | |
Functions | | | |
Piano Room | Yes | | |
Rhythm | Number of Rhythms | 40 | |
Registration Memory | Number of Buttons | 6 (x 4 banks) | |
Overall Controls | Metronome | Yes | |
| Tempo range | 5 - 500 | |
| Transpose | -12 - 0 - +12 | |
| Tuning | 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments) | |
| Scale Type | 7 types | |
| USB Audio Interface | 44.1 kHz, 16 bit, stereo | |
Bluetooth | Audio/MIDI (varies by area) | Audio (varies by area) | |
Storage and Connectivity | | | |
Storage | Internal Memory | Total maximum size approx. 1.4 MB | |
| External Drives | USB flash drive | |
Connectivity | Headphones | Standard stereo phone jack (x 2) | |
| MIDI | IN, OUT | |
| AUX IN | Stereo mini jack | |
| AUX OUT | Standard phone jack (L/L+R, R) | |
| USB TO DEVICE | Type A | |
| USB TO HOST | Type C | |
| DC IN | Type C | |
| Sustain Pedal | Type C | |
| Pedal Unit | Yes | |
Amplifiers and Speakers | | | |
Amplifiers | (20 W + 6 W) x 2 | | |
Speakers | (Oval (12 cm x 6 cm) + 2.5 cm (dome)) x 2 | | |
Power Supply | | | |
AC Adaptor | PA-300C (Output: DC 16 V, 2.4 A) | | |
Power Consumption | 18 W (when using PA-300C AC adaptor) | | |
Accessories | | | |
Included Accessories | Owner’s Manual, Online Member Product Registration, Music rest, Foot pedal (FC3A), Power cord*/AC adaptor* (PA-300C) *Varies by area | | |

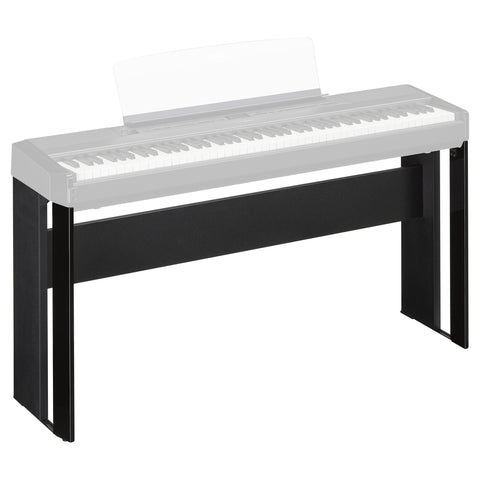

Separately Sold Accessories | Headphones (HPH-150, HPH-100, HPH-50), Keyboard stand (L-515), Pedal unit (LP-1, FC35), Foot pedal (FC3A), Footswitches (FC4A, FC5), AC adaptor* (PA-300C), USB wireless LAN adaptor (UD-WL01) *Varies by area | | |
